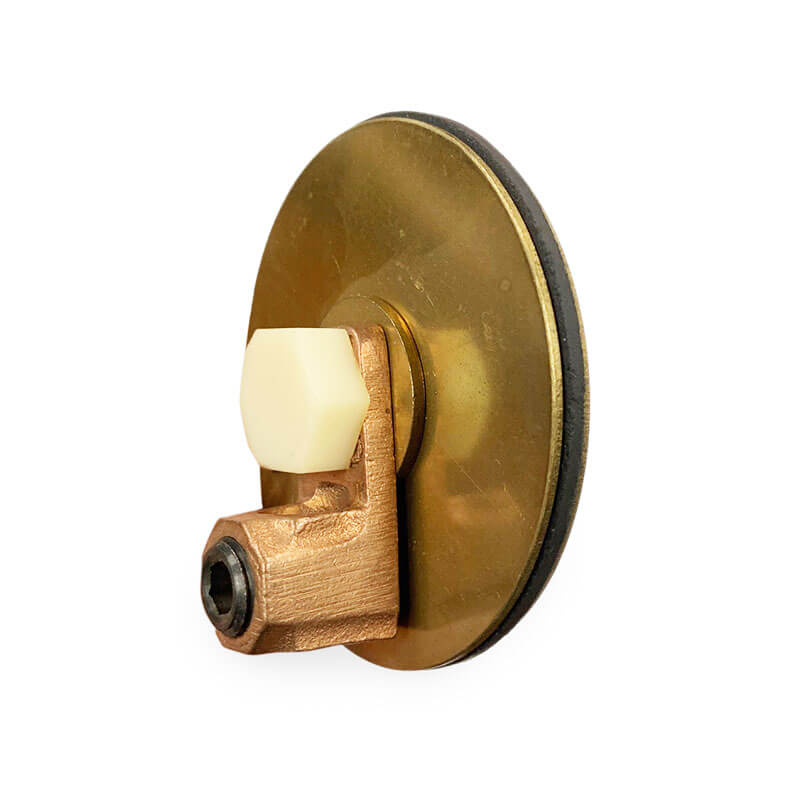

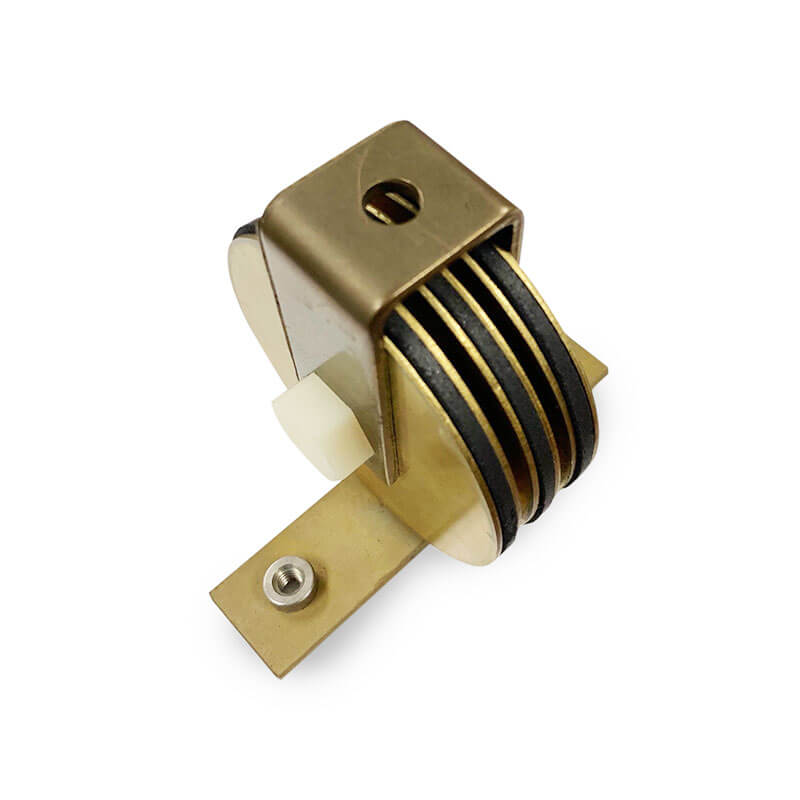

Surge Arrestor
TMK

Product Features:

  • Non-linear voltage current characteristics
  • Limits potentially destructive voltage levels but does not interfere with cathodic protection
  • Nominal values – 50 ohms at 250 volts / 30,000 ohms at 3 volts
  • Self-healing; able to survive multiple strikes
  • Priced competitively
  • Easy-To-Install
Description

The TMK protects insulating joints by limiting potentially destructive voltage build-up (while still preserving electrical isolation). Protect isolation against arc-overs and gasket destruction.

HOW DOES A TMK SURGE ARRESTOR OPERATE?

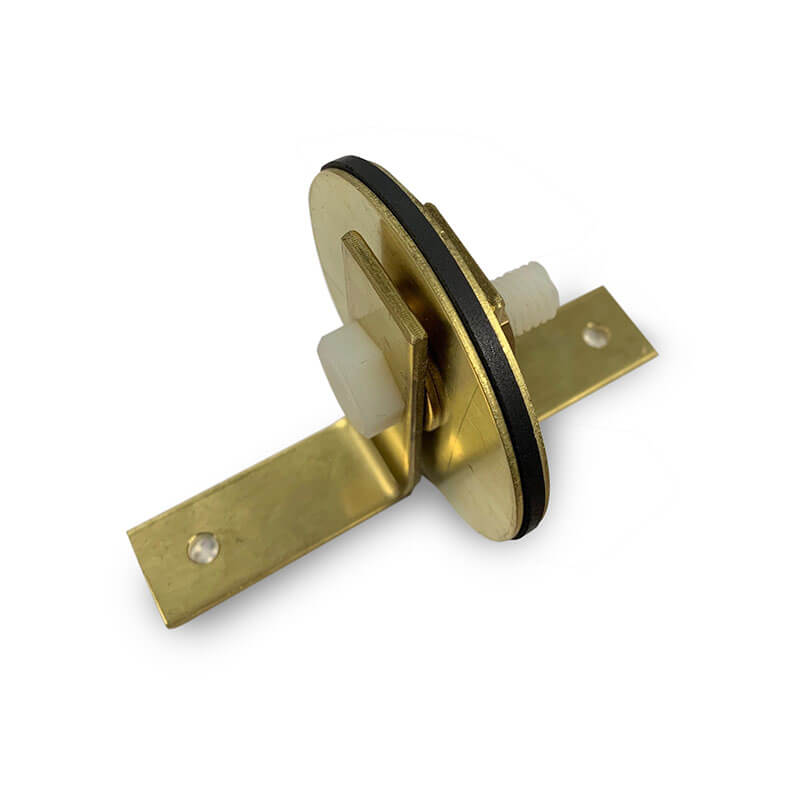

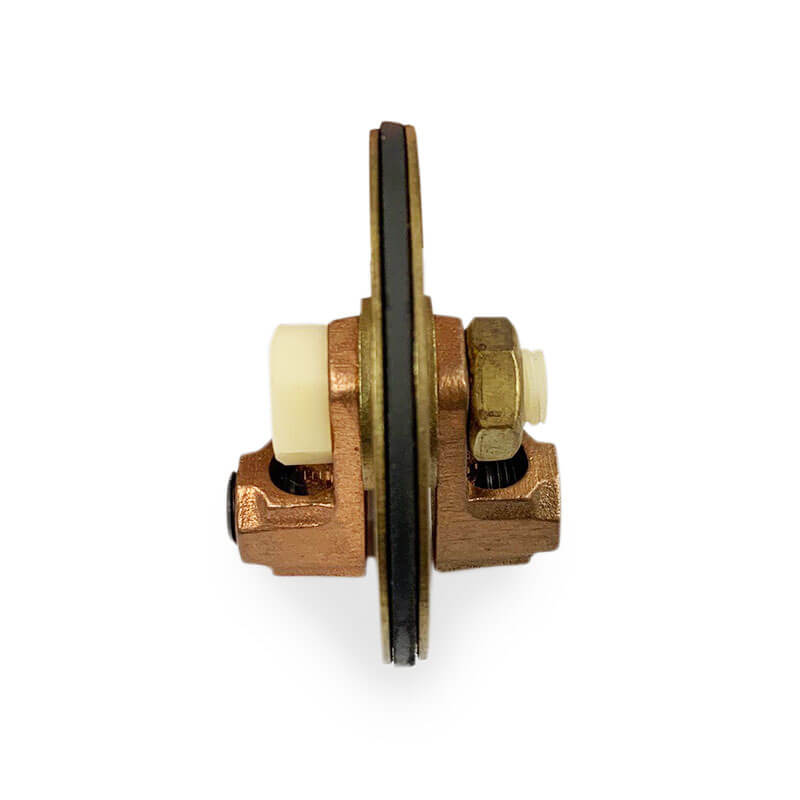

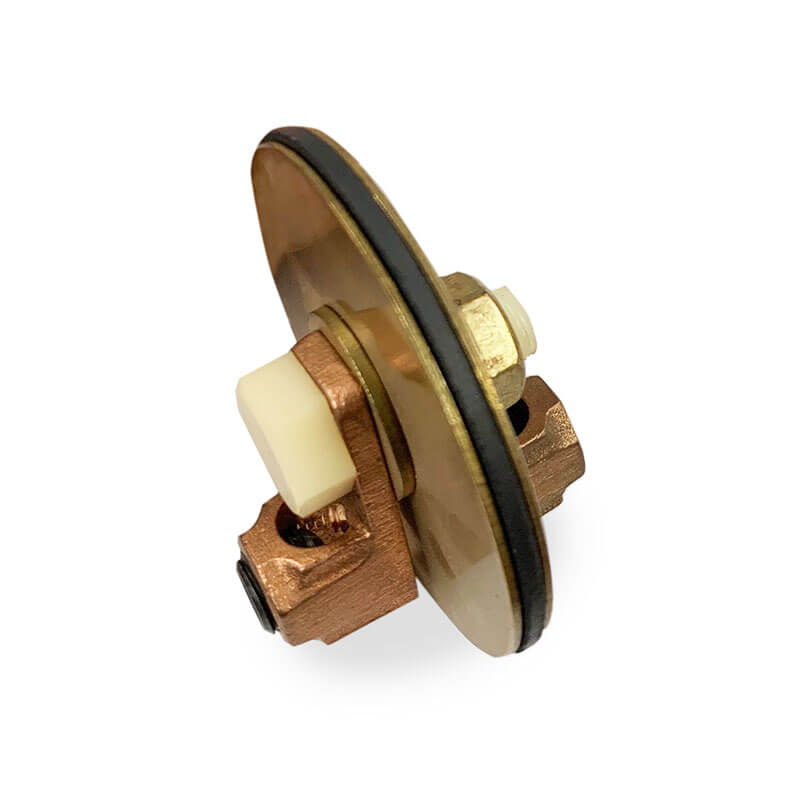

The TMK is placed across an insulated joint, with connections to the pipeline. These connections allow the TMK to bridge the isolation joint. Different connections are available to facilitate the installation of the TMK, common connections include a bracket connection to a flange stud (Model TMK-200), or a wire connection to the pipeline (Model TMK-100). Under normal operating conditions the TMK surge arrestor is non-conductive and preserves the electrical isolation of the insulating joint, even with cathodic protection voltage applied to the system. The TMK protects the isolation of the system until a high voltage event occurs, at this time, the surge arrestor will dissipate the voltage and pass it across the isolation joint. This helps prevent the pipeline insulator from being shorted.

Contact Us to Learn How TMK Surge Arrestors Can Protect You.

Self Healing. Competetively Priced. Easy installation.
